CSK and CSK..2RS | Stieber Clutch

Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.

All the CSK versions are equipped with “formchromed” sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid steel housing with N6 tolerance, and onto a shaft with n6 tolerance. For this reason, the initial bearing radial clearance is set at C5.

Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C. CSK..2RS is 5 mm wider but is equipped with lip seals to be water splash resistant.

Product Data Sheets

  • p-7426-sc-a4_csk-2rs
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) CSK & CSK2RS Types
  • (A4) CSK & CSK2RS Types

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Hatschekstra├če 36
69126 Heidelberg
Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
Email: sales@stieber.de
www.stieber.de

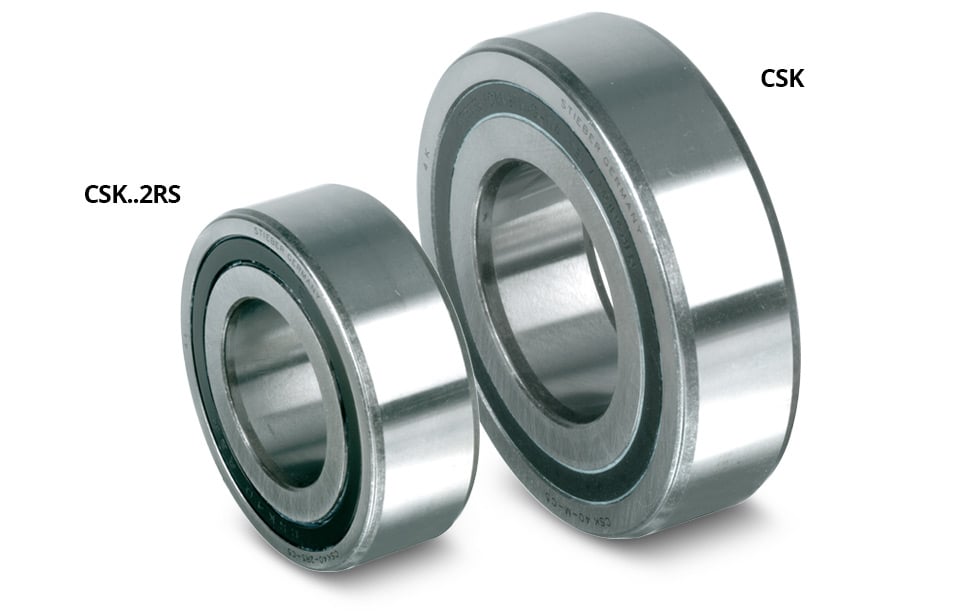

Stieber CSK CSK2RS Clutch
