NFR | Stieber Clutch

Type NFR is a bearing supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation. Standard lubrication is oil.

Size 8 to 20 units use steel on steel bearing support from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed capacity. A typical arrangement is shown overleaf. The inner race is keyed to the shaft. The outer race has a positive n6* tolerance to give a press fit in a housing to H7*. Additional side notches provide for positive torque transmission.The housing must be strong enough to not expand after assembly.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • mcc-p-7426-sc-en-a4_nfr
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) NFR Type

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Stieber
Hatschekstraße 36
69126 Heidelberg - Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
CONTACT

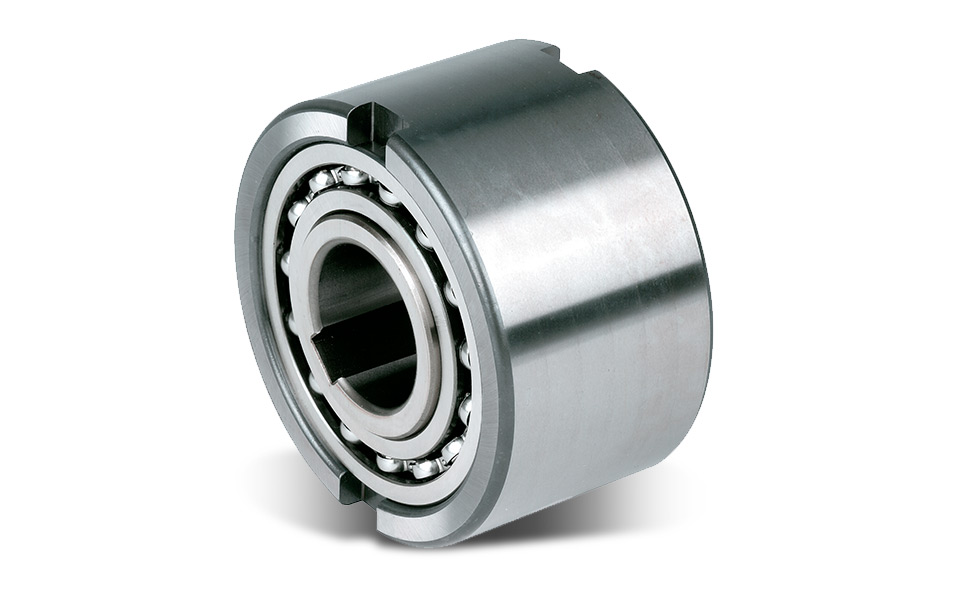

Stieber Clutch NFR Type
