GFR and GFRN | Stieber Clutch

Types GFR, GFRN are roller type freewheels. These units are part of the Stieber modular system. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf. The bearings must not be axially stressed.

Typically, types GFR and GFRN are used with the F series covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the below technical data pages. The outer race of the GFR model is plain to receive and center any component bored to H7* tolerance.

Torque is transmitted by bolts through the cover plate in this case. Types GFR, GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit the torque. Two paper seals are delivered with each unit to be placed between the outer race and cover plates.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • mcc-p-7426-sc-en-a4_gfrn
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • m1013e_gfr_gfrn

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Stieber
Hatschekstraße 36
69126 Heidelberg - Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
CONTACT

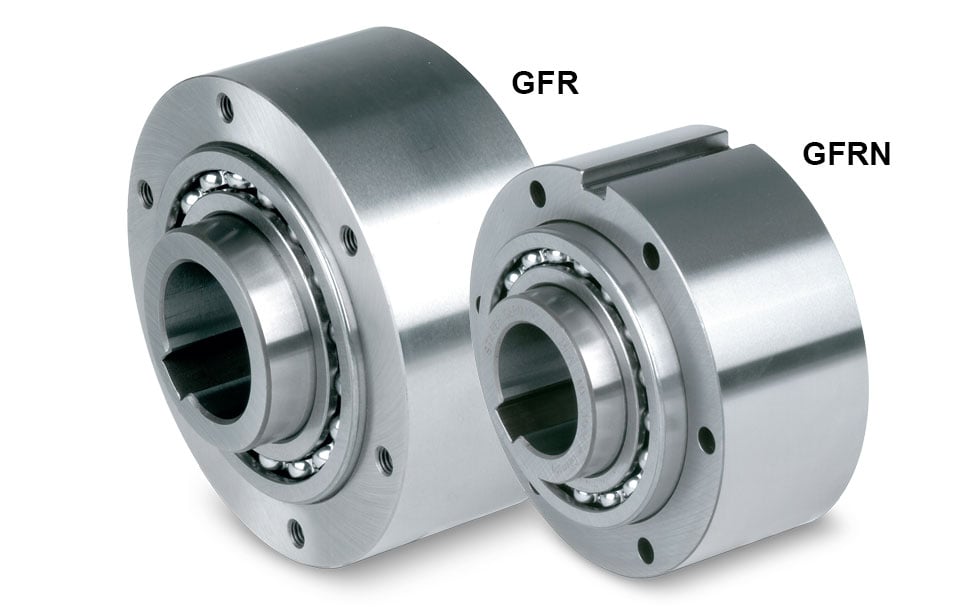

Stieber GFR and GFRN
