DC races are offered for use with the DC freewheel cages shown on the previous pages. The cage and race assembly, makes a non-bearing supported freewheel.

Bearing support for axial and radial loads must be provided, along with lubrication and sealing. The sprag space tolerance must not be exceeded when all bearing clearances and mounting tolerances are considered.

Taper between races should be below 0,007 mm for 25 mm width. Outer races type A* and B* should be pressed into housings that will not deform after assembly. Please contact our technical department if you need to transmit maximum freewheel torque capacity with A* and G* type. Key stresses may have to be checked.

*These data refer to the indications in the product data sheet attached below (on page 2).

Product Data Sheets

  • p-7426-sc-a4_dc-races
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • (A4) Overrunning Clutches & Backstops

Service Manual

  • (A4) DC & DC Races Types

Related Literature

  • Stieber Clutch Line Card
  • Overrunning Clutches & Backstops

Product News

Contact Info

Hatschekstra├če 36
69126 Heidelberg
Germany
Phone: +49 6221 3047-0
Fax: +49 6221 3047-31
Email: sales@stieber.de
www.stieber.de

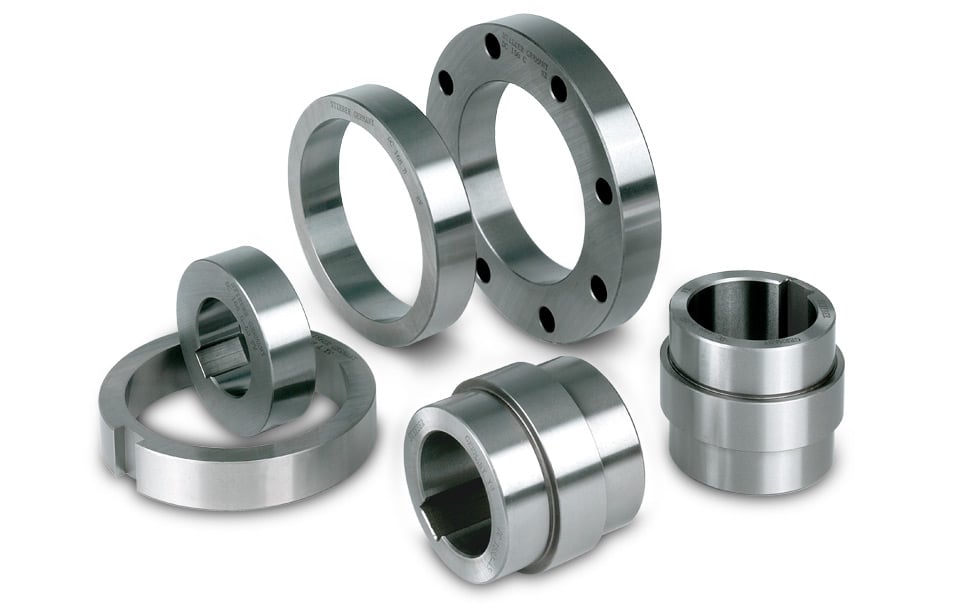

Stieber Clutch DC Races
